Foton Forland T5 4x2 Mini Dump Truck

The Forland T5 mini dump truck puts a tipping body on Foton's compact T5 chassis. A QC485Q diesel engine with a mechanical injection pump delivers 35 kW through a 5G18 five-speed gearbox to a BJ121 rear axle with a 5.375 ratio. Rated payload is 2,000 kg, up to 2,500 kg maximum, on a 3,500 kg gross vehicle weight.

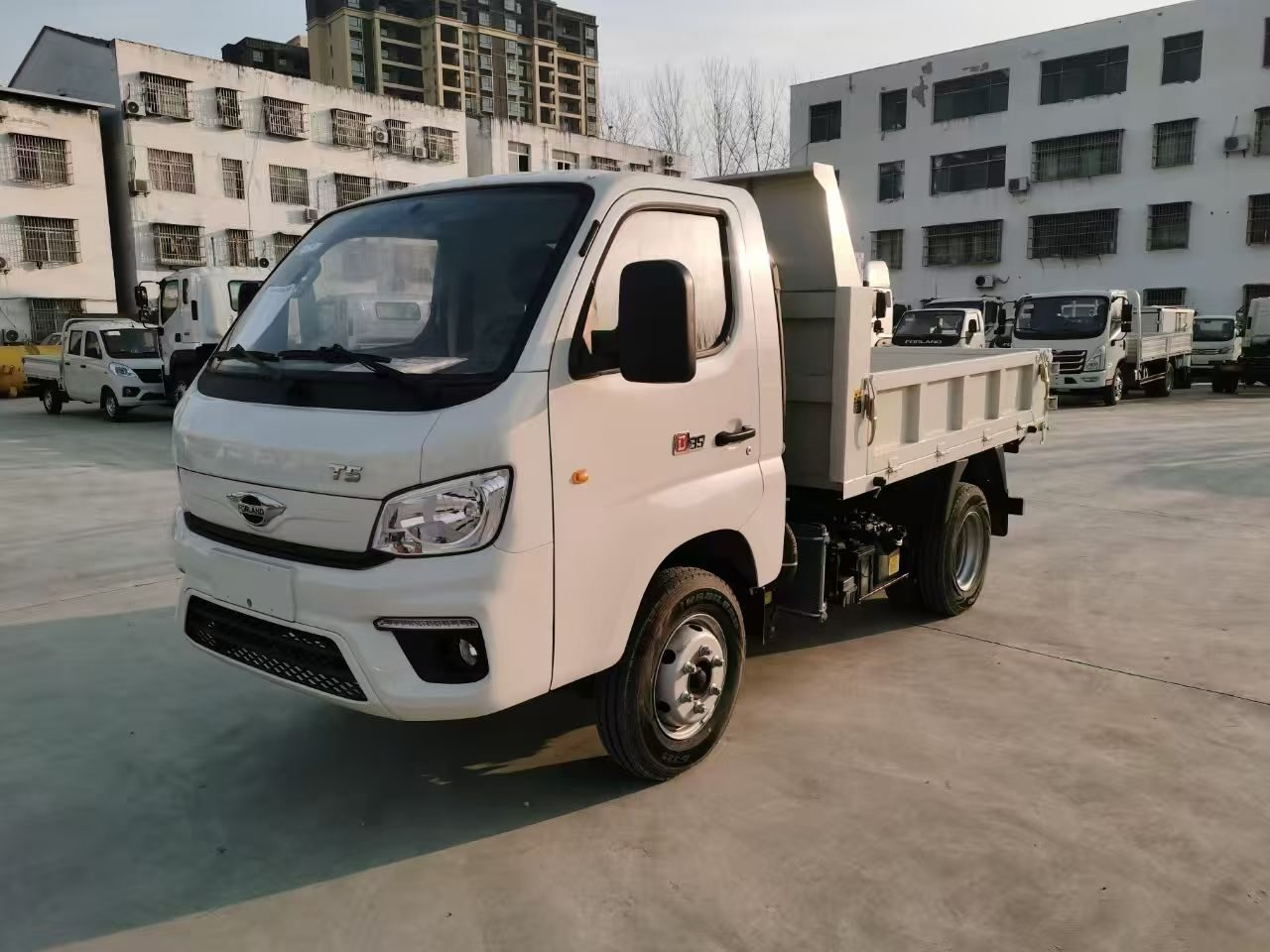

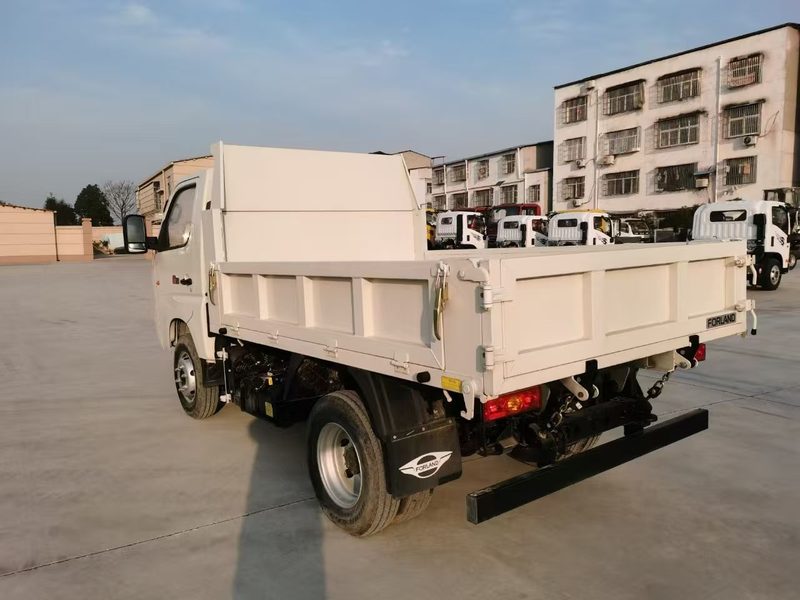

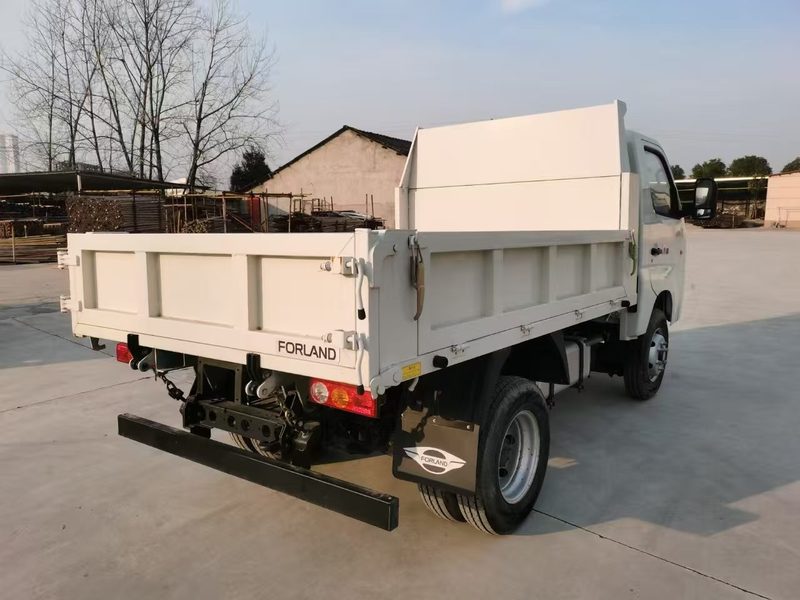

At 5,005 mm long and 1,730 mm wide it works on narrow site roads and village streets. ABS, power steering, air conditioning and a 50-litre fuel tank are standard, with front disc and rear drum hydraulic brakes. It is available in left-hand or right-hand drive; the photos on this page show a white unit.

• QC485Q diesel engine, 35 kW, mechanical injection pump
• 5G18 five-speed manual gearbox, 4x2
• 2,000 kg rated / 2,500 kg maximum payload, 3,500 kg GVW
• Tipping body, inside 3,100 × 1,610 × 360 mm
• 175R14LT tyres with dual rear wheels
• ABS, power steering, A/C, 50 L fuel tank

Body type, colour and equipment are configured to order. Tell us how you will use the truck and we will suggest a specification.

We ship driven units by RoRo vessel, and smaller vehicles or SKD/CKD kits in containers or on flat racks. Overland routes by rail or road serve Central Asia.

Each shipment comes with:

• Commercial invoice and packing list
• Bill of lading (B/L)
• Certificate of origin (CO)
• Export customs declaration
• Destination conformity documents, coordinated with your inspection body
