Model
Dongfeng 4,000 L Fuel Tanker Truck
Brand
Dongfeng
Steering
LHD / RHD
Category
Special
More photos, a walk-around video and the factory spec sheet are available on request.
Request more photos
Dongfeng · Special Vehicles

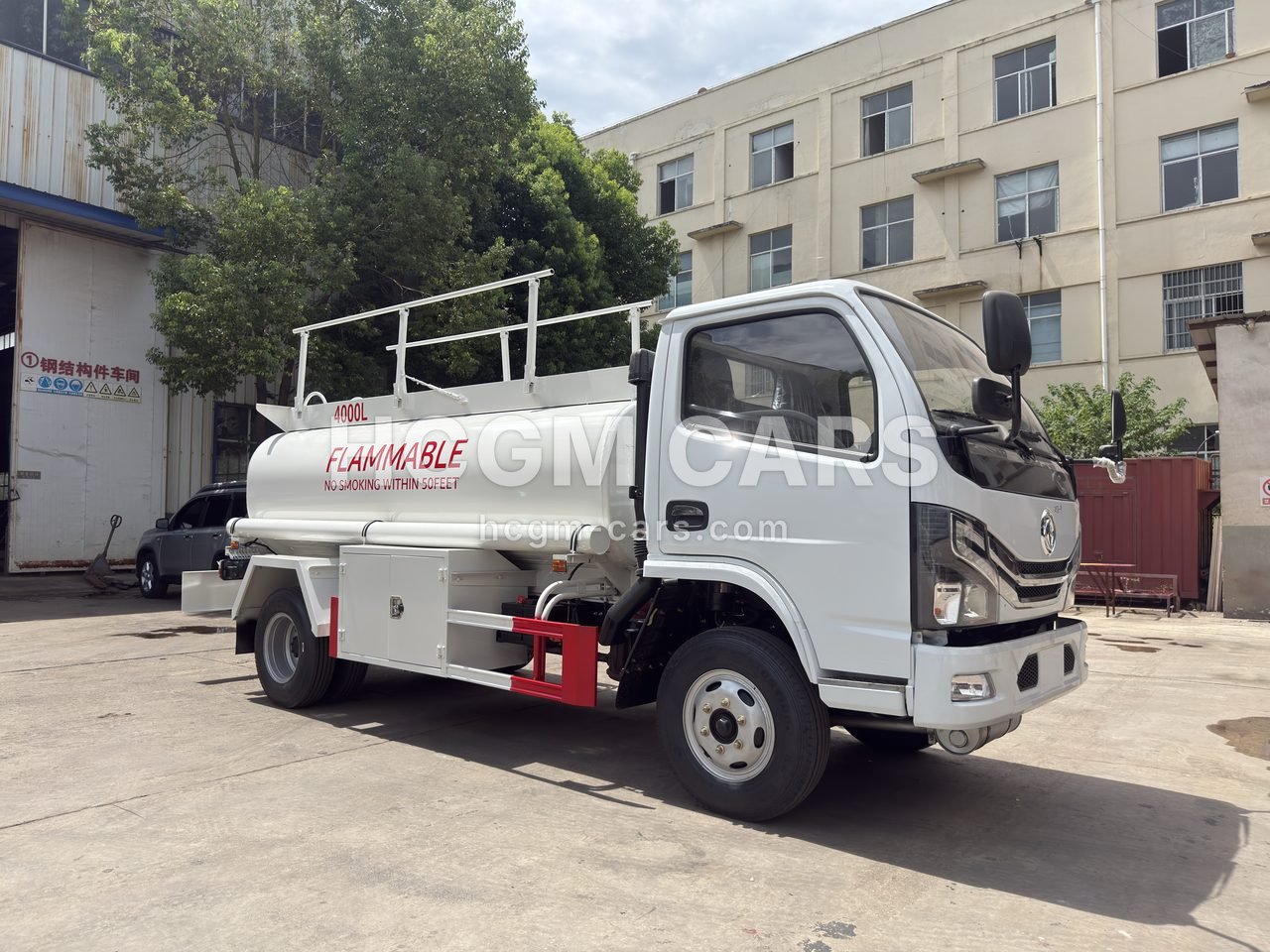

Dongfeng 4,000 L Fuel Tanker Truck
Light 4x2 refueller with a 4,000 L tank, self-priming pump, flow meter and a 15 m auto-rewind hose reel, on a Dongfeng chassis with a 125 hp diesel.
Tank4,000 L (4 m³)
EngineYN38PE-1, 125 hp
Pump60-30 self-priming
Hose reel15 m auto-rewind
- LHD & RHD
- FOB / CFR / CIF
- Export documents included
Overview
This Dongfeng light fuel tanker carries 4,000 litres and dispenses on site, which makes it a mobile fuel station for construction sites, mines, farms, generator sets and vehicle fleets. A 60-30 self-priming pump loads and unloads the tank by itself, and a size-40 flow meter with a 15 m automatic-rewind hose reel measures every delivery.
The tank has a European-standard manhole, a bottom valve and an emergency shut-off valve at the rear, with two delivery hoses and a fire extinguisher supplied. The chassis uses a YN38PE-1 3.76 L turbo-intercooled diesel rated at 92 kW (125 hp) and 320 N·m with a 5-speed manual gearbox, power steering and exhaust brake with ABS. It is available in left- or right-hand drive.
- 4,000 L (4 m³) fuel tank with European-standard manhole
- 60-30 self-priming pump: self-loading and discharge

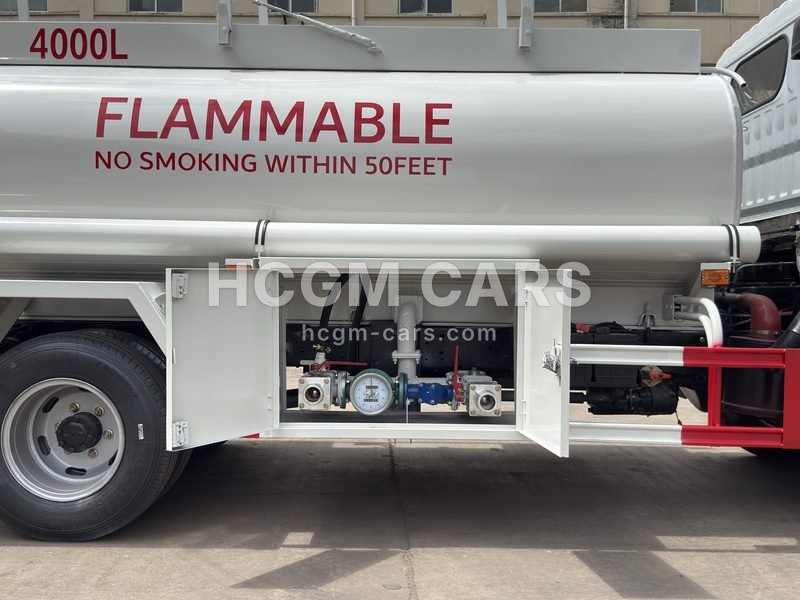

- Size-40 flow meter and 15 m automatic-rewind hose reel
- Bottom valve and rear emergency shut-off valve
- Top walkway with guard rails, rear ladder, two delivery hoses and fire extinguisher
- YN38PE-1 3.76 L diesel, 125 hp, 5-speed manual, ABS and exhaust brake
Typical buyers and uses
- Refuelling machines on construction and mine sites
- Farm and plantation fuel supply
- Generator and power-site refuelling
- Fleet and depot fuel delivery
Video
Specifications
| Tank volume | 4,000 L (4 m³) |
|---|---|
| Manhole | European-standard manhole cover |
| Valves | Bottom valve; emergency shut-off valve at the rear |
| Pump | 60-30 self-priming pump, self-loading and discharge |
| Metering | Size-40 flow meter |
| Hose | 15 m automatic-rewind hose reel; two delivery hoses |
| Safety | Fire extinguisher; FLAMMABLE and no-smoking markings |
| Engine | YN38PE-1 3.76L diesel, inline 4-cylinder, turbocharged and intercooled |
|---|---|
| Max power | 92 kW (125 hp) @ 3,000 rpm |
| Max torque | 320 N·m @ 1,800–2,200 rpm |
| Emission standard | Euro 3 |
| Transmission | 5-speed manual, diaphragm-spring clutch |
| Drive | 4x2 |
| Max speed | 90 km/h |
| Fuel tank | 120 L |
| Length × width × height | 5,885 × 2,100 × 2,300 mm |
|---|---|
| Wheelbase | 3,300 mm |
| Curb weight | 3,320 kg |
| Rated payload | 4,500 kg |
| Seats | 2 |
| Front / rear axle | 2.5 t / 5 t, drum brakes |
|---|---|
| Suspension | Multi-leaf springs |
| Steering | Power steering |
| Brakes | Exhaust brake, air dryer and ABS |
| Tyres | 7.00R16 |
| Air conditioning | Cooling A/C |
| Steering | LHD or RHD |
|---|---|
| Supply form | CBU |
| Shipping | RoRo or flat rack, tank cleaned and empty |
Typical export configuration. Engine, emission standard, body and equipment vary by version and market; the final specification is confirmed in your quotation.
Options and configurations
- Tank size and compartments to order
- Tank markings in your language
- Extra hose reels or longer hoses
- Spare parts package
Need a different spec?
Send the body size, engine, colour or equipment you need. We check availability with the factory and quote it.
Ask about a custom specShipping and documents
We ship driven units by RoRo vessel, and smaller vehicles or SKD/CKD kits in containers or on flat racks. Overland routes by rail or road serve Central Asia, Laos and Myanmar.
Each shipment comes with:
- Commercial invoice and packing list
- Bill of lading (B/L)
- Certificate of origin (CO)
- Export customs declaration
- Destination conformity documents, coordinated with your inspection body
Markets we ship this model to
- Senegal LHD
- Togo LHD
- Cameroon LHD
- Chad LHD
- Kenya RHD
- Tanzania RHD
- Zambia RHD
- Mozambique RHD
- Madagascar LHD
- Mauritius RHD
- Jordan LHD
- Lebanon LHD
- Venezuela LHD
- Guyana RHD
- Guatemala LHD
- Honduras LHD
- Dominican Republic LHD
- Malaysia RHD
- + 31 more markets
Not on the list? We ship worldwide; ask for a quote to your port.
Questions about the Dongfeng 4,000 L Fuel Tanker Truck
How much fuel does it carry?
4,000 litres (4 m³) in one tank. If you need a different size or several compartments, tell us the volume and products and we will quote a matching tank.
Can it fill machines directly on site?
Yes. The self-priming pump, flow meter and 15 m automatic-rewind hose reel let you refuel trucks, excavators and generators where they work, and measure every delivery.
Is it available in left- and right-hand drive?
Yes. We supply LHD for countries that drive on the right and RHD for countries that drive on the left. Tell us your country and we will quote the right version.
How is a fuel tanker shipped?
The tank is cleaned and shipped empty, by RoRo or on a flat rack. We prepare the export documents and can add your language to the tank markings before shipment.
