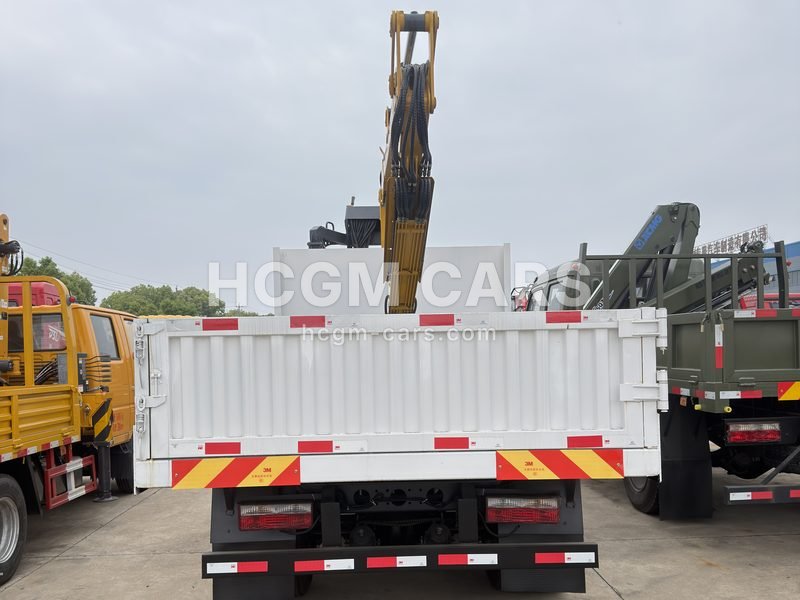

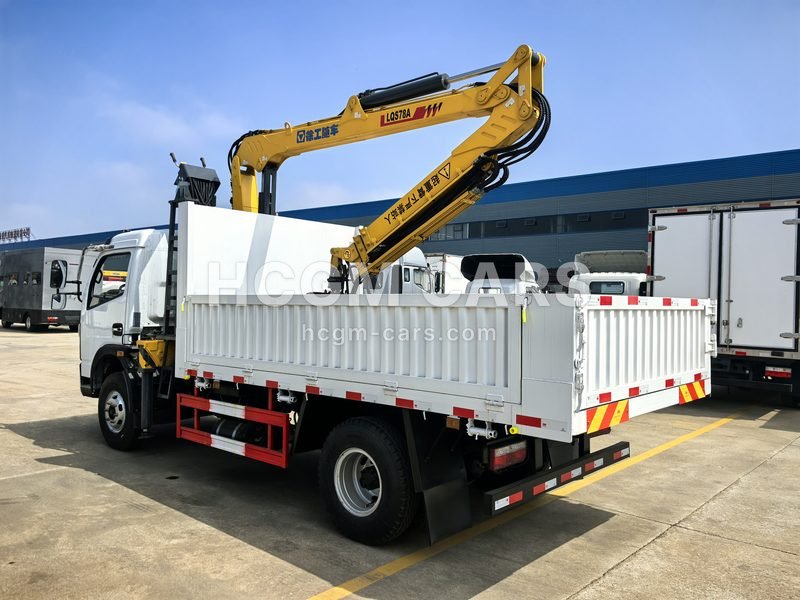

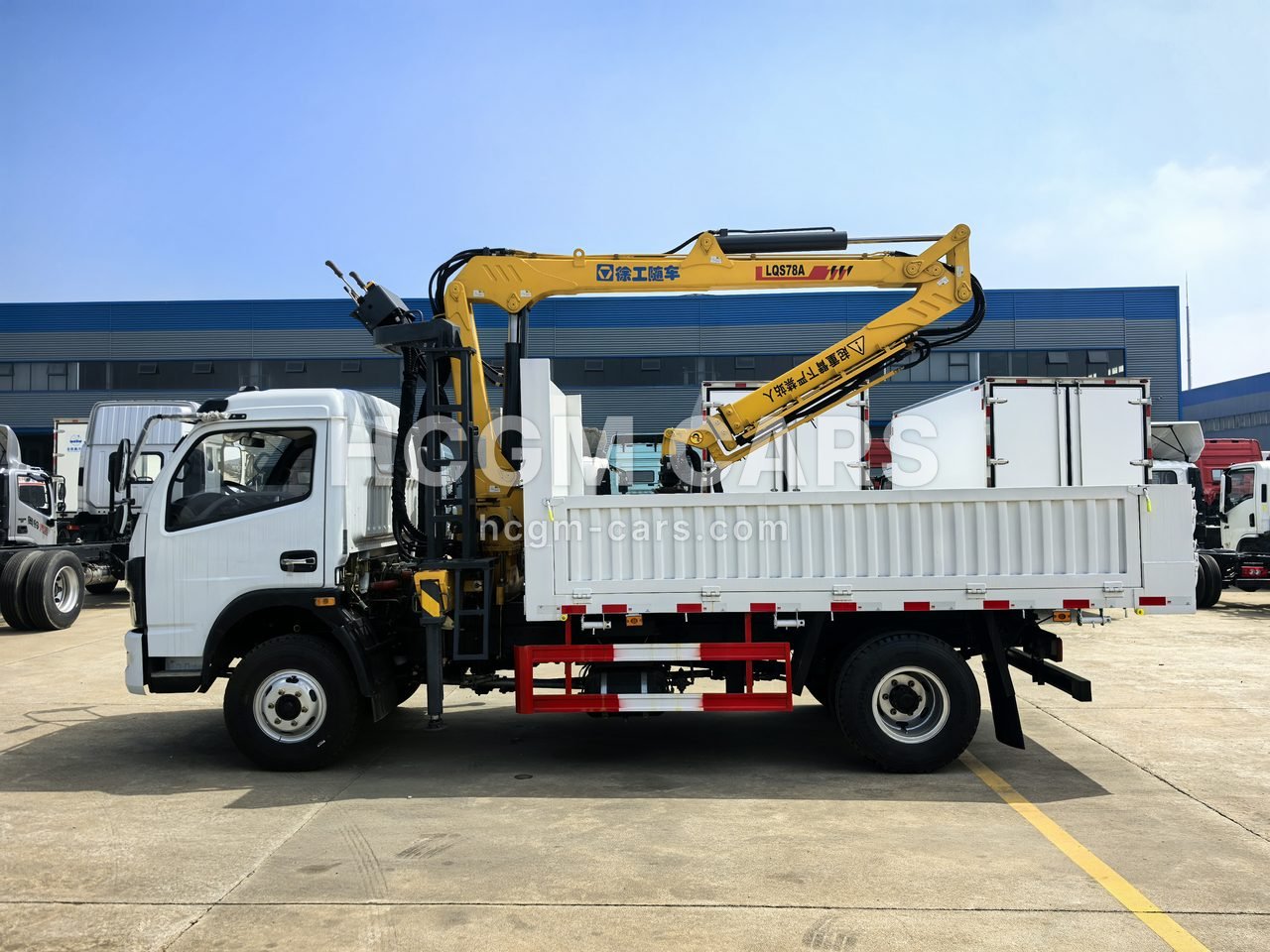

Dongfeng 160HP Tipper Truck with XCMG Log Loader Crane

This Dongfeng 4x2 tipper carries an XCMG LQS78A forestry crane behind the cab, so one operator can load logs, timber, scrap and bulky goods without a separate loader, then tip the cargo box to the rear to unload. The crane has a 68 kN·m lifting moment, 7.8 m maximum reach, 380° slewing driven by twin rack cylinders, and a 1-tonne grapple that opens to 1,220 mm and rotates a full 360°.

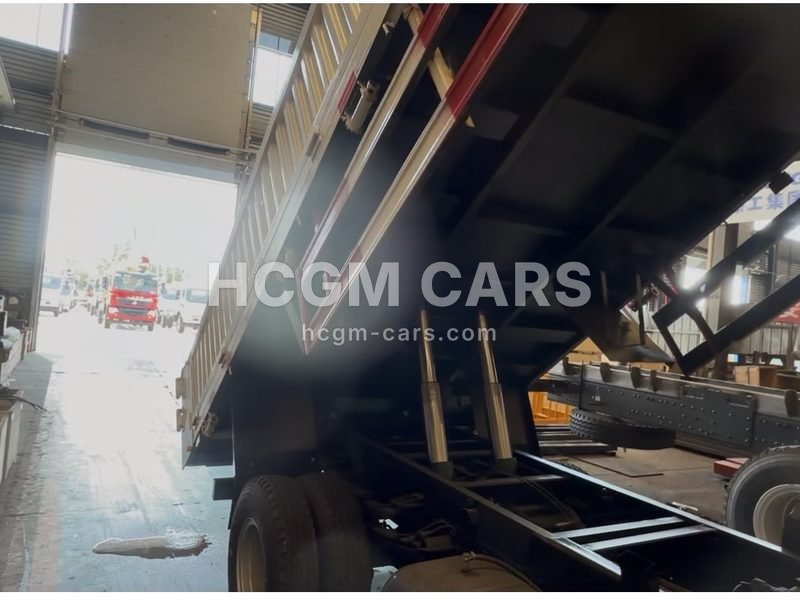

The rear-tipping cargo box is raised by twin hydraulic lifting cylinders and measures 3,950 × 2,250 × 600 mm inside, with a 7,000 kg rated load, so it also handles sand, gravel and other bulk loads. The chassis has a Yuchai YC4E160-33 4.26 L diesel rated at 118 kW (160 hp) with an 8-speed gearbox, air conditioning, ABS, exhaust brake and power steering, and is available in left- or right-hand drive.

• XCMG LQS78A forestry crane: 68 kN·m, 7.8 m reach, 380° slewing
• Rear-tipping cargo box on twin hydraulic cylinders: load with the crane, unload by tipping
• 1 t grapple, 1,220 mm opening, 360° continuous rotation
• Double-layer, double-slewing base; twin rack cylinders for slewing
• Box-section outriggers with hydraulic lines inside, 2,229–3,851 mm span
• Excavator-grade cylinders, slewing buffer valve, oil cooler as standard
• Yuchai 160 hp diesel, 8-speed gearbox, 7,000 kg rated load, A/C, ABS, LHD or RHD

We ship driven units by RoRo vessel, and smaller vehicles or SKD/CKD kits in containers or on flat racks. Overland routes by rail or road serve Central Asia, Laos and Myanmar.

Each shipment comes with:

• Commercial invoice and packing list
• Bill of lading (B/L)
• Certificate of origin (CO)
• Export customs declaration
• Destination conformity documents, coordinated with your inspection body
